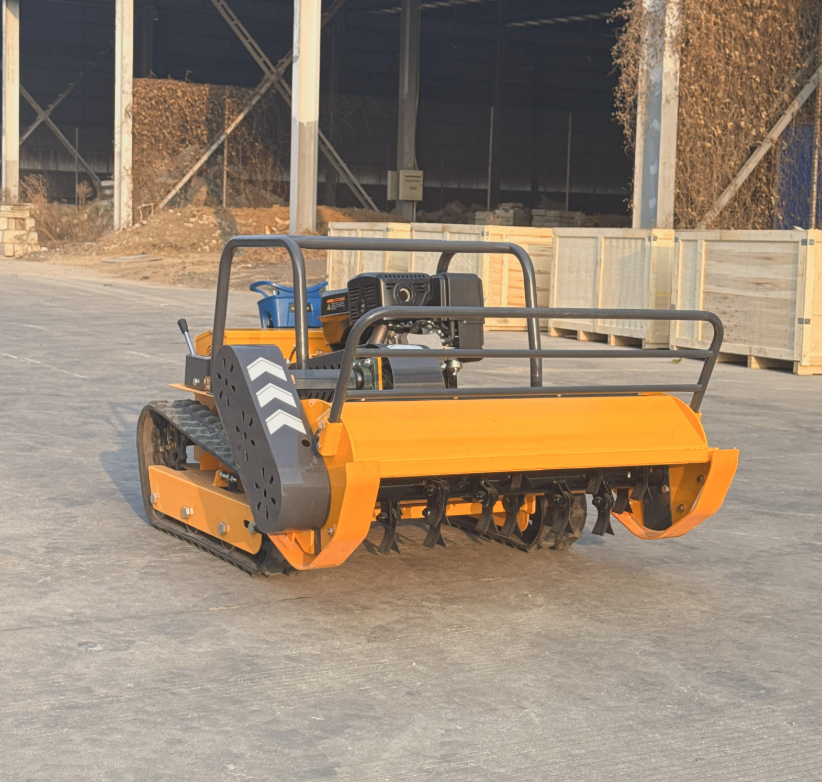

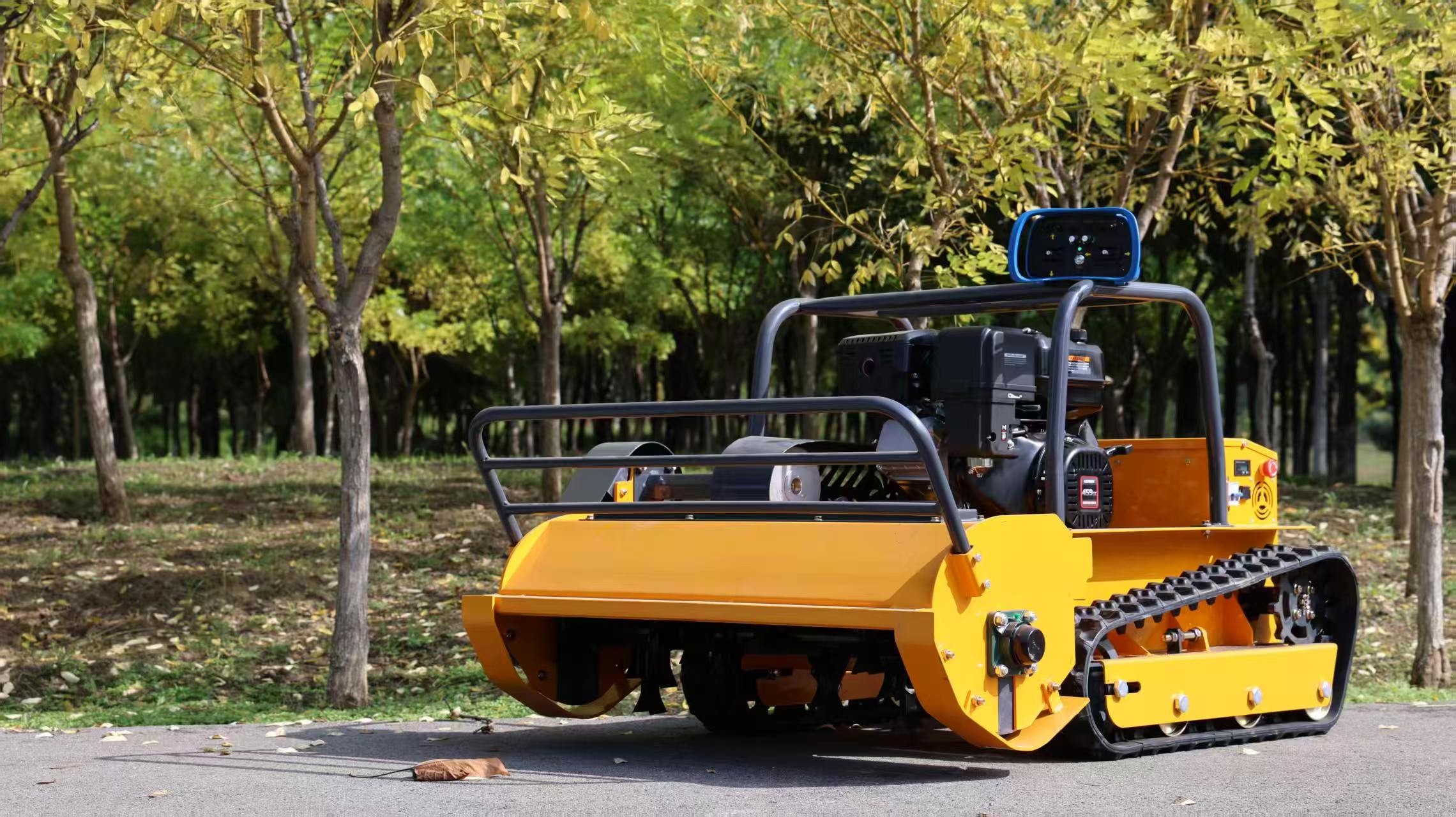

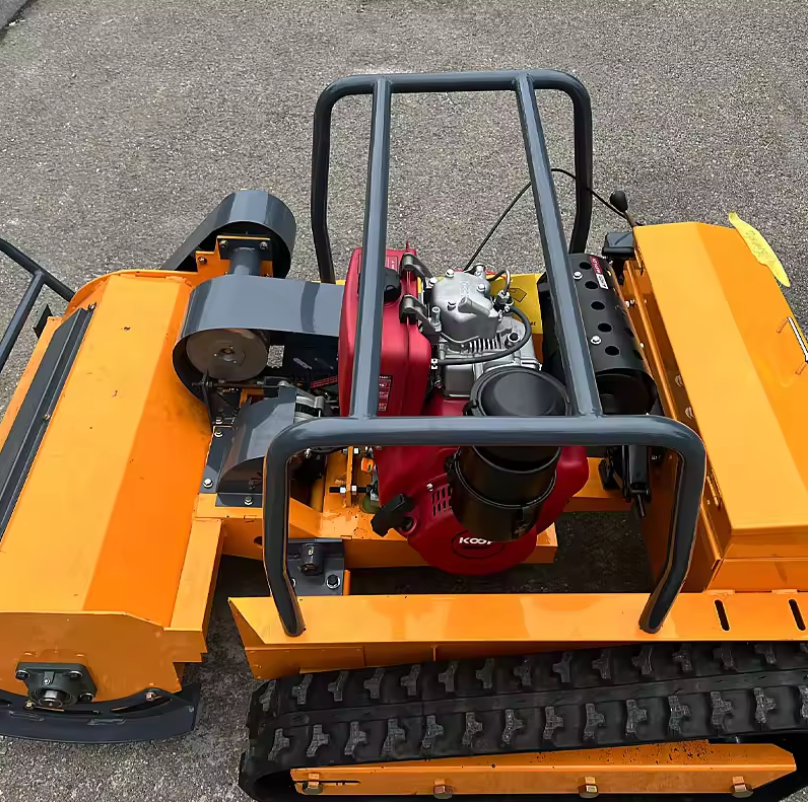

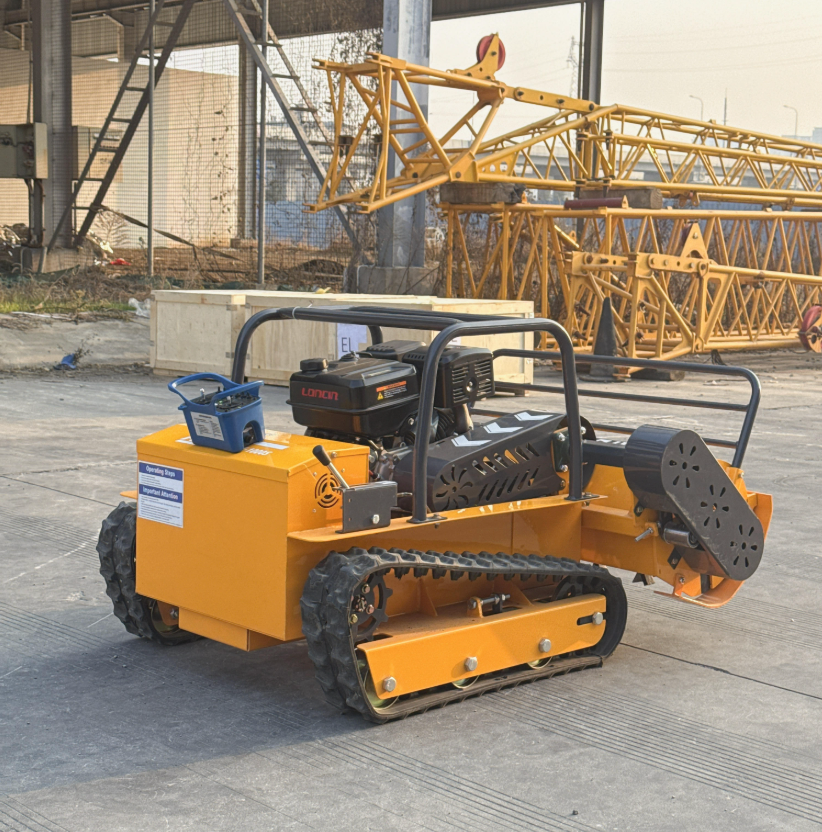

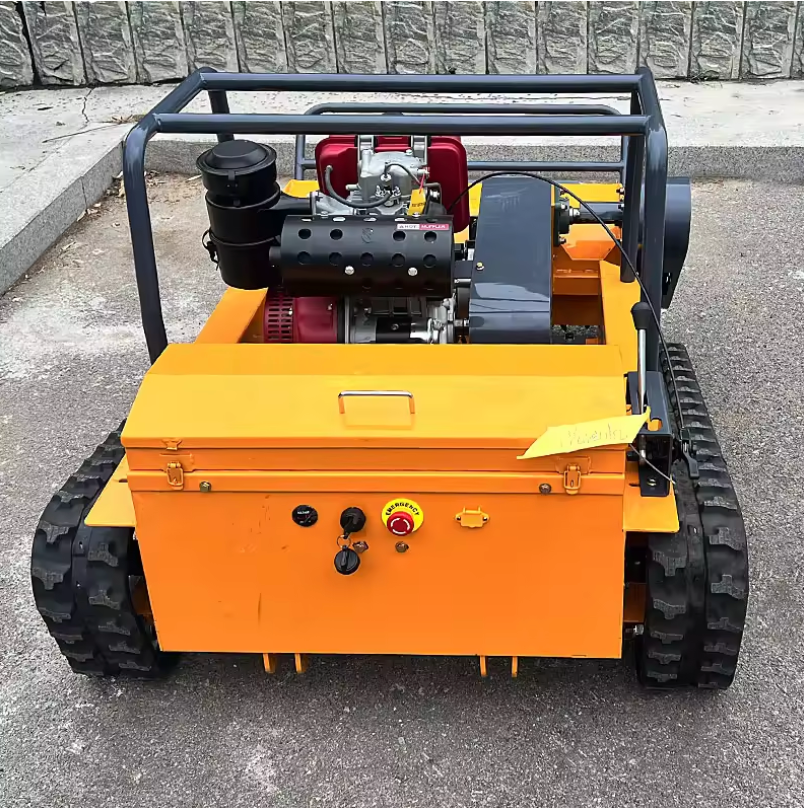

| Product Name | MST–QZ1200L | |
| mowing width/height (mm) | Mowing width 1200mm, mowing height 0-280mm ; | |
|
configuration |
motor | Kaiyuelin/Changchai/Science Popularization; |
| power system | Built-in generator 2500W，20.5A Chaowei x2 24V | |
|
Powertrain |
Drive power 1000W*2 split gearbox
hybrid electric (remote throttle adjustment) dual power generation system 13/25 horsepower electric start 30A starter battery*1 37 engineering rubber tracks |
|
| Remote control system | 500m remote control distance/high and low speed; | |
|
fuel system |
Diesel/Gasoline fuel capacity: 5.5L/9L
Fuel consumption: 2L/3.8L Engine oil capacity: 1.6L/2.7L |
|
|
Working driving system |
Climbing height 50°
travel speed 0-6km/h working efficiency ≤6000m²/h |
|
|
Overall dimensions/weight
|
Bare machine dimensions: 1700*1400*800mm
bare machine weight: 400kg Package dimensions: 1850*1500*900mm package weight: 480kg |
|
Note: Multiple options are available for exterior color, engine brand, and remote control.
