| SPECIFICATIONS | |
| Model | MST- 40 |
| Engine | |
| Manufacturer | Yanmar Japan 3-cylinder |
| Model | Four-stroke in-line water-cooled diesel engine |
| Torque | 107.7 Nm |
| Fuel | Diesel |
| Fuel tank capacity | 28 L |
| Injection method | Direct injection |
| Rated power | 28.2Kw (38.3Hp) @3000rpm |
| Drive system | Hydrostatic precision control |
| Cooling system | Oil-cooled mixing |
| Self-cleaning cooler (optional) | Automatic control + manual control (optional) |
| Cold start device | Optional |
| Vertical obstacle clearance | 500mm |
| Wading depth | 500mm |
| Departure angle | 30° |
| Linear deviation angle | 0.30% |
| Topsoil filling depth | 20mm |
| Permissible operating inclination | 60°Any direction (after engine optimisation) |
| Hydraulic system | |
| Hydraulic pump | Plunger pump + gear pump(B&P) |
| Drive motor | High-torque motor(Poclain) |
| Mower deck motor | High-speed motor( Danfoss ) |
| Mower deck independent circuit | Yes |
| Drive independent circuit | Yes |
| Action independent circuit | Yes |
| Hydraulic tank capacity | 26L （System capacity 40L） |
| Front arm lift | 750Kg |
| System permissible operating angle | 80°in any direction (following hydraulic system optimisation) |
| Track | |
| Rubber tracks (standard specification) | Raised-tooth rubber tracks (supporting 55-degree incline operations) feature teeth twice as high as standard or common tracks, delivering enhanced traction and friction to tackle diverse terrains. |
| Remote control system | |
| Working distance | >150m |
| Frequency | 2.4G |
| Battery | Built-in rechargeable lithium battery; two batteries per unit, enabling self-charging of the device. |
| Proportional joystick | Yes (supports joystick direction switching, accommodating both front-end and rear-end forward driving for convenient operation. A rotary switch enables swift forward/reverse direction changes without the need for turning around). |
| Engine start/stop | Remote control |
| Engine speed | Remote control |
| Headlights | Remote control |
| Horn | Remote control |
| Action control | Remote control |
| Dimensions | |
| Overall width (including mower deck) | 1500mm |
| Overall length (including mower deck) | 2900mm |
| Overall height (including mower deck) | 1300mm |
| Weight | |
| Main unit | 1250Kg |
| Lawn mowing attachment | 110Kg |
| Land clearing attachment | 380Kg |
| Performance | |
| Hill Start Assist | Satisfies operating conditions with a slope angle of 55° (50° triggers equipment alarm: horn + warning light; 55° activates automatic shutdown for excessive angle protection (exceeding 55°), preventing overturning. Angle sensors are added to detect terrain changes during operation. Should the angle exceed the machine’s limit, an automatic alarm activates to prevent misoperation and overturning.) |
| Continuously Variable Transmission Control (0 to 100%) | Operating speed Forward/Reverse 0–4 km/h Transfer speed Forward/Reverse 0–9 km/h |
| Parking | Remote parking switch ensures the equipment remains securely stationary. The parking knob enables the machine to be parked on site, functioning as an electronic handbrake. This effectively safeguards safety, preventing rollaway incidents and accidents caused by misoperation. |
| Steering | Skid steering, enabling turning on the spot |
| Hill Descent Control | Yes (When operating on slopes, excessive angles may cause the machine to tilt due to its own weight. Installing an inclination sensor and programming the system to activate braking and corrective steering is recommended). |
| Cruise Control | Yes (One-click cancellation) |
| Safety | |
| Emergency stop | One-touch stop |
| Excessive tilt angle | Alarm (horn + warning light), automatic shutdown |
| Headlights | LED |
| Signal loss | Automatic parking |
| Other | Hydraulic system, abnormal oil pressure, automatic shutdown |

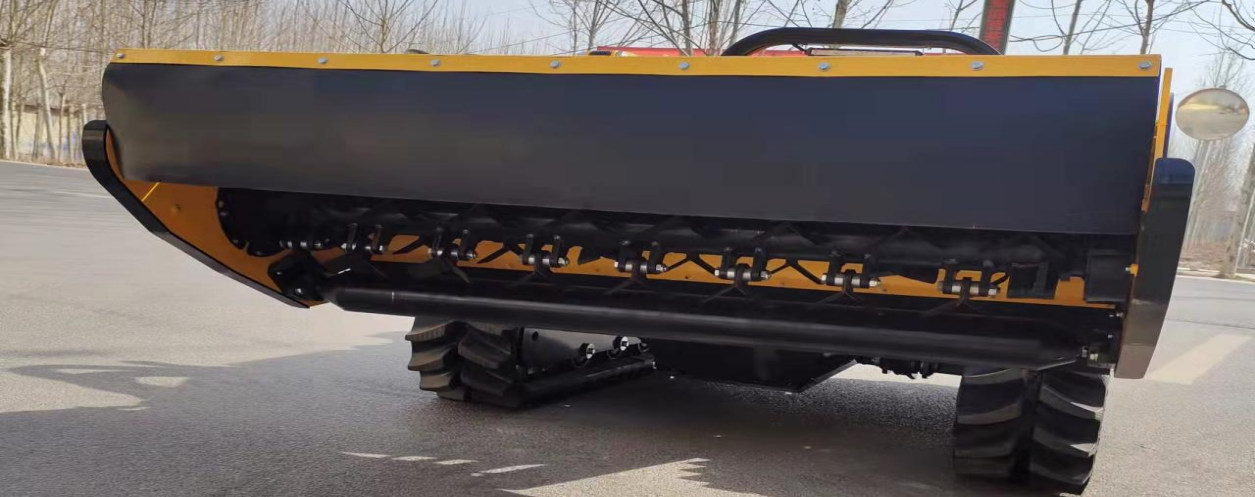

| Attachments/Mower Deck (Optional) | |
| Standard attachments | Mower deck (Y-blade) |
| Attachment hydraulic flow | 84L/min |
| Pressure | 250bar |
| Overload pressure cut-off | Yes |
| Cutter speed | 3000rpm |
| Tool turning | Forward and reverse rotation (bidirectional 0-100% steplessly adjustable) |
| Front and rear protective curtains for attachments | Front chain, rear rubber plate |
| Control for opening and closing the front cover of the attachment | Remote control |
| Tool | Y-shaped blade, mulching grass and wood up to 30mm diameter |
| Cutting edge length | 1400mm |
| Tool rotation range | 300mm |
| Adjustable grass height | 30mm-90mm (3settings) |
| (via roller position adjustment) | The forearm can be raised to ensure the stubble height exceeds 90mm. |
| Front arm lift height | -200mm 至 500mm |
| Implement terrain matching | Yes (matches terrain undulations within 10°) |

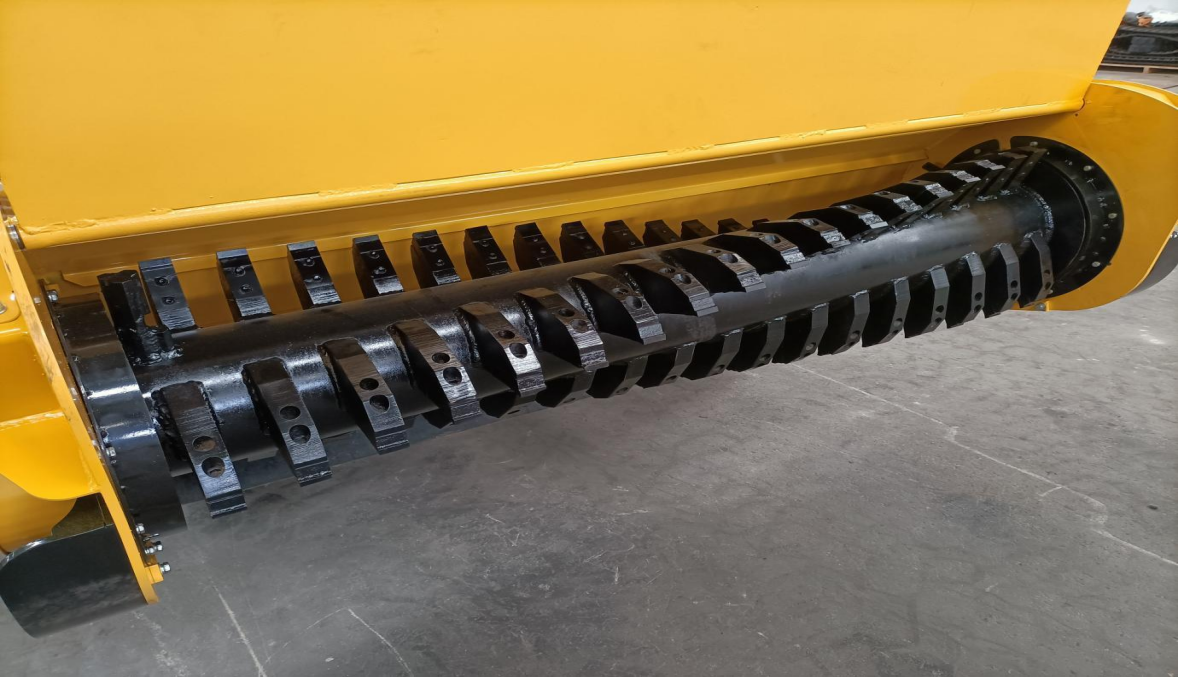

| Attachment/Clearing Platform (Optional) | |
| Attachment | Clearing platform |
| Attachment hydraulic flow | 84L/min |
| Pressure | 250bar |
| Overload pressure cut-off | Yes |
| Tool rotation speed | 2500rpm |
| Tool rotation direction | Forward/reverse (bidirectional 0-100% stepless adjustment) |
| Attachment front and rear protective curtains | Rear chain |
| Attachment front cover opening and closing control | Remote control |
| Material | Tungsten steel |
| Working width | 1200mm |
| Number of blades | 27 |
| Cutting diameter | ≤100mm |
| Forearm lift height | -200mm 至 500mm |
| Terrain-following attachment | Yes (matches terrain undulations within 10°) |
| Brief Overview of Functional Advantages: | |
| 1) Custom-designed integrated oil-water cooling system, ensuring effective heat dissipation under any permissible machine operating conditions; 2) Independently developed bidirectional fan system, supporting periodic cleaning of cooler covers and forced cleaning via a miniature air compressor. Incorporates reversible fan blades, controllable by remote or programmed timers, enabling airflow from both sides of the radiator. This simultaneously cools the engine and facilitates dust removal; 3) All operations are remotely controllable via the remote control unit. Every function of this machine is remotely operated, featuring dual-layer safety measures: the machine itself has an emergency stop button, and the programme includes an emergency shutdown function (the machine automatically shuts down if the receiver fails to receive a signal within 2 seconds); 4) Supports on-the-spot turning capability. Dual joystick operation enables turning on the spot and fine-tuning turns during travel; 5) Attachment changeover time <10 minutes (pure operation time). Each attachment can be swiftly exchanged using imported quick-release couplings, significantly extending service life. 6) Equipment maintenance monitoring: Real-time surveillance of water temperature, oil temperature, oil level, RPM, and blockages ensures optimal operational status. The receiver display provides live monitoring of the entire machine’s condition, with sensors detecting whether the machine is functioning normally. |
|
